Factorio: Engineering Addiction#

Megabases and travel time#

A megabase isn’t just a bigger base — distance itself becomes a cost, and the layout has to be chosen to pay that cost as little as possible.

• station throughput isn’t the same as train capacity on paper: loading, unloading, travel and recovery time all eat into how much a route actually moves per hour
• a hub-and-spoke layout (small outposts feeding a few concentration hubs, which run fewer, larger trains to the main base) cuts congestion at the receiving end compared to every outpost running its own train in
• a grid-shaped rail network is easy to expand outward, but rarely gives the shortest path between two points — expandability and travel time pull in different directions

Two megabase philosophies#

Past a certain scale, almost every megabase lands on one of two shapes, and both lean on trains for the same underlying reason.

• a sprawl design keeps a small number of large, centralised hubs and relies on trains to haul materials in from spread-out outposts — the hubs are big because consolidating production is what makes delivery tractable
• a city block design instead tiles many small, self-contained blocks on a shared rail grid — expansion is “stamp down another block,” not “grow an existing hub”
• both use trains, not belts, between distant points: an inserter pulling off a belt costs more per tick than one pulling from a chest or wagon, and a bus spanning megabase distances pays that cost the whole way — a train’s cost stays roughly constant regardless of distance

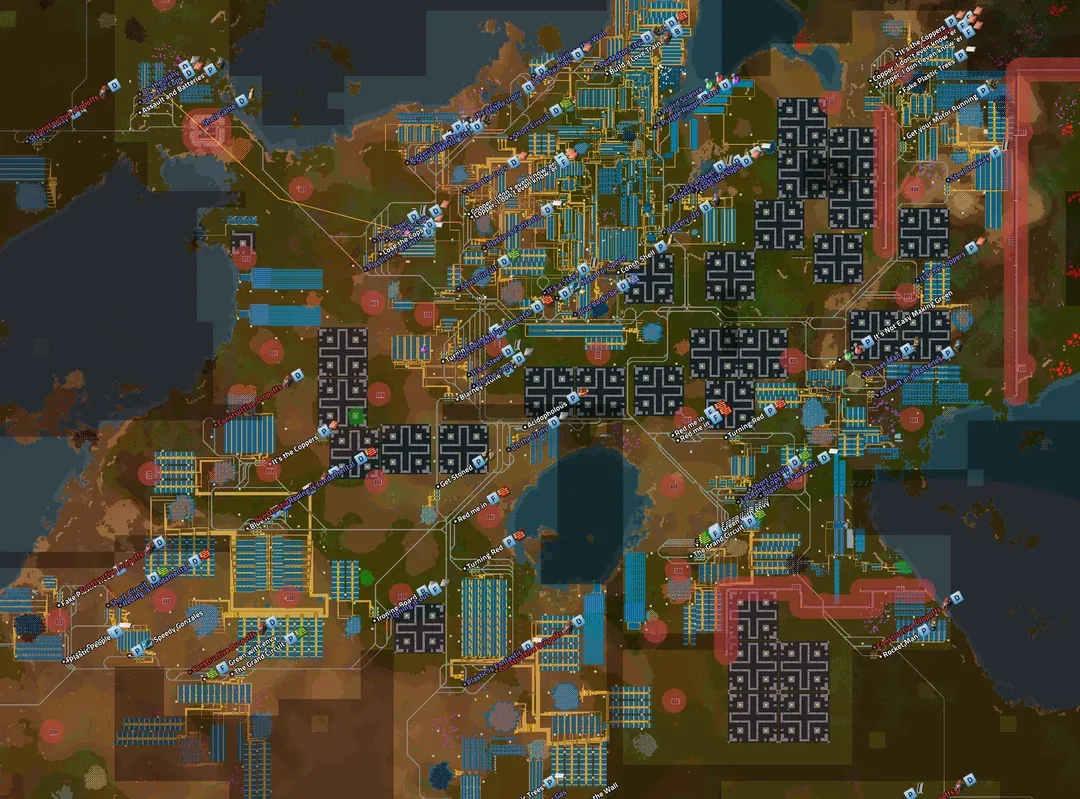

Two megabase philosophies, in practice#

Source: Factorio Wiki, CC BY-NC-SA 3.0.

The sprawl shape: a handful of large hubs, joined by rail across whatever distance the terrain put between them.

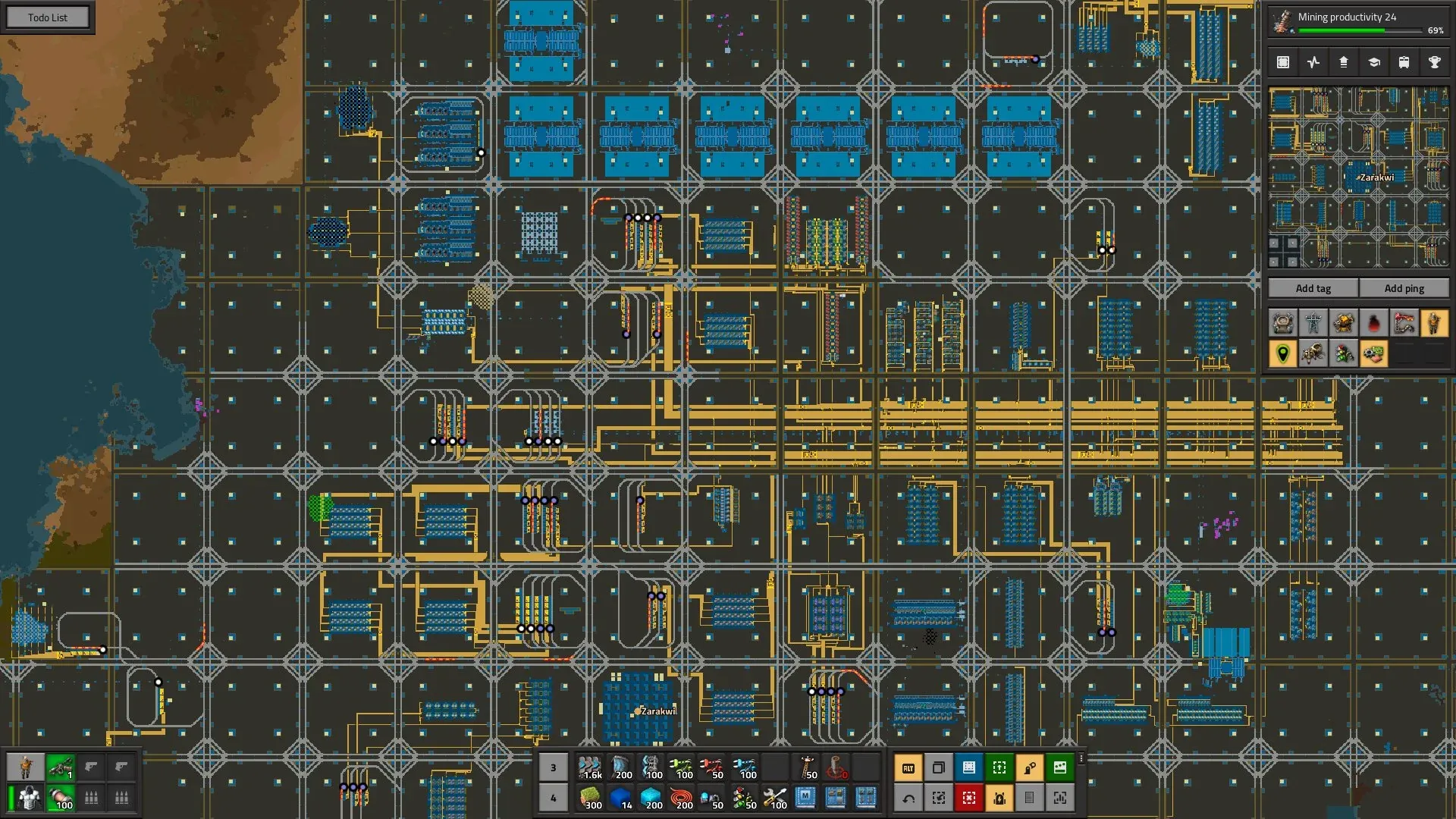

City blocks, in practice#

Source: Factorio Wiki, CC BY-NC-SA 3.0.

The city-block shape: the same rail-between-blocks logic as the sprawl, just with the blocks made uniform and small instead of few and large.

The bus doesn’t scale#

A bus’s ceiling is fixed the moment it’s built: belt throughput per tier is a hard number, not a soft one, and the only lever past that number is width.

• total throughput (both lanes combined) is capped per belt tier: yellow 15 items/second, red 30, blue 45 — doubling a bus’s capacity always means doubling its lane count, a faster belt tier doesn’t fix a bus that’s already on the fastest one
• a train scales differently: one cargo wagon holds 2,000 items of ore or 4,000 of plate per trip, so adding capacity means adding wagons to the same two rails, not more parallel infrastructure for the route’s entire length
• this is why last slide’s trains-over-belts choice isn’t stylistic — a bus spanning megabase distances pays its full width in belts for the whole route; a train pays that cost once, at the wagon, regardless of how far the rails run

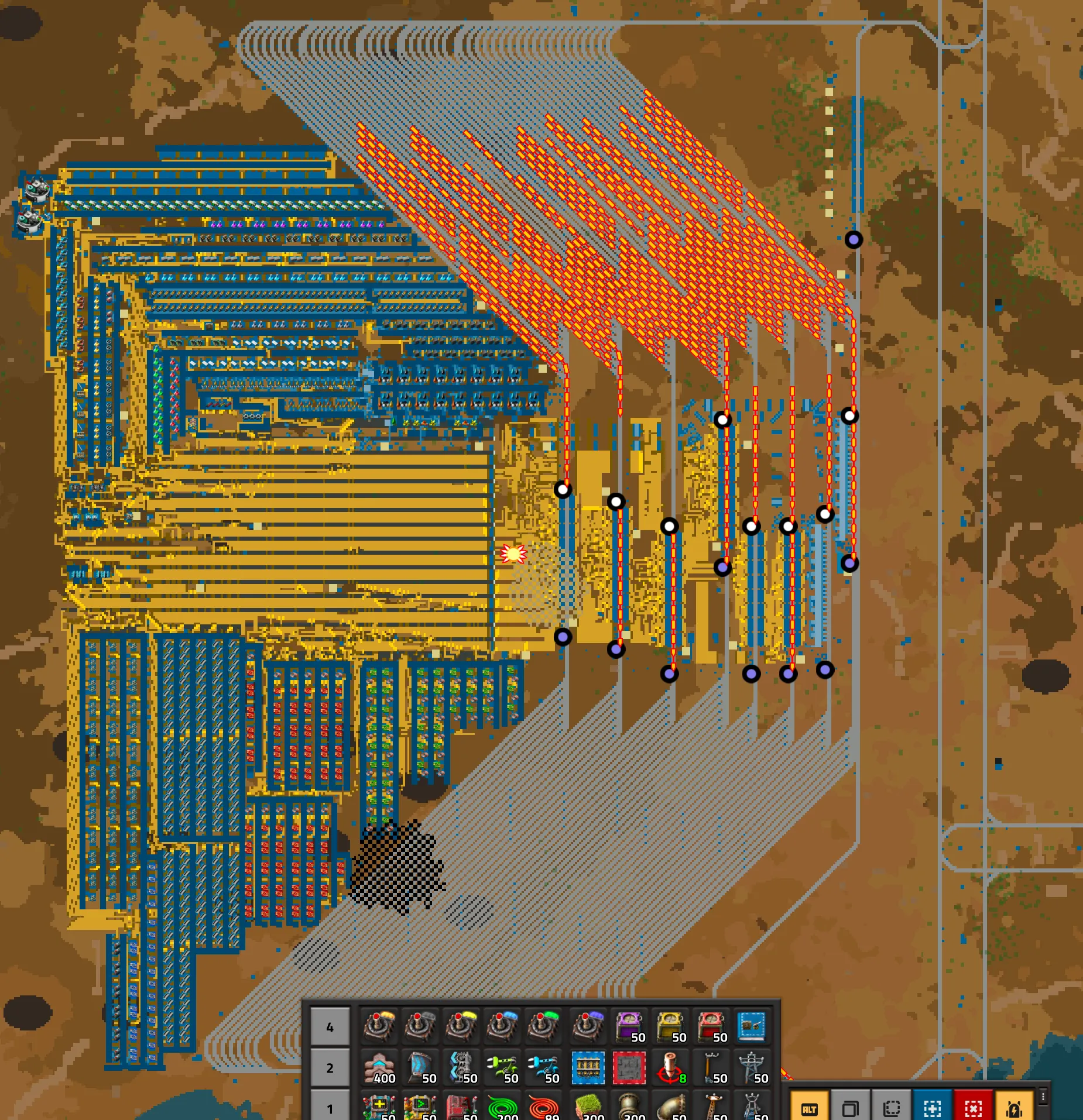

The bus at megabase scale, in practice#

Source: Factorio Wiki, CC BY-NC-SA 3.0.

Every one of those parallel lanes is capacity the hub needed just to keep itself fed — the rails they feed into are how everything past this hub gets served without repeating that width all over again.

UPS basics#

Every Factorio tick has a fixed budget — about 16.667 milliseconds — to finish every calculation the simulation owes for that tick, and once a base is big enough, that budget stops being free.

• the game targets 60 updates per second (UPS); if a tick’s work runs over budget, UPS drops below 60 and the whole simulation slows down, not just the slow part
• entity count is usually the largest cost — for assembling machines it’s machine count that costs UPS, not speed, so fewer faster machines simulate cheaper for the same output
• belts, trains, fluid and electric networks are each their own cost line, and electric cost scales with network count, not size — one stray disconnected pole is its own costly network

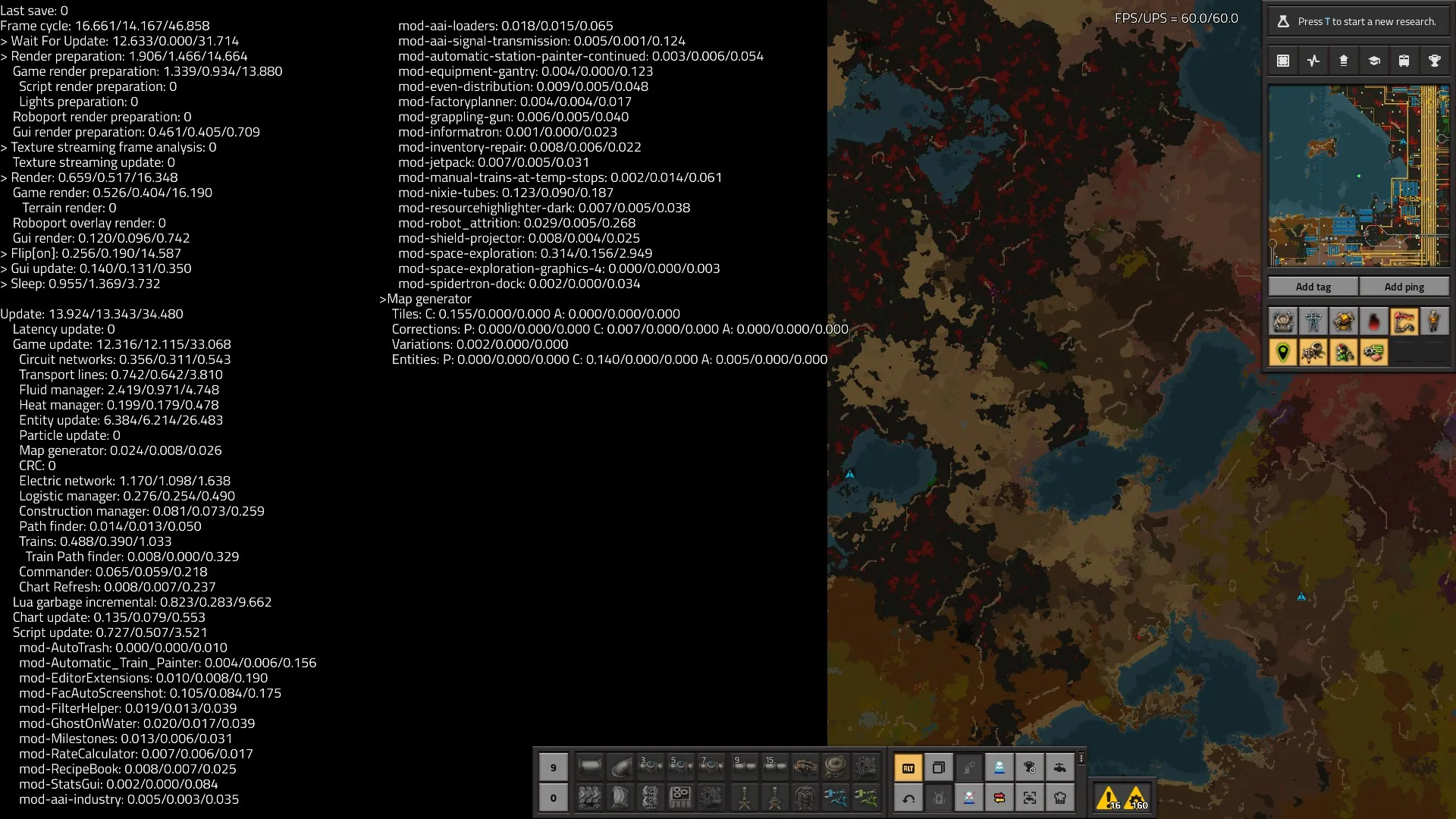

UPS basics, in practice#

Source: Factorio Wiki, CC BY-NC-SA 3.0.

This is what “the simulation is a finite resource” looks like as numbers — every line here is competing for the same 16.667ms.

Expansion#

Growing a factory has a theoretical ceiling: if every belt of plate a base produces is fed straight back into building more production, output can roughly double every five to six minutes — but only while there’s still somewhere useful to place the next machine.

• doubling needs both the materials for the next stage and the time to place them — a factory with the plates but not the belts, poles or bot coverage isn’t expanding at the theoretical rate, it’s expanding at the placement rate
• expansion has a stopping point set by the goal, not momentum: a rocket launch needs a specific, finite amount of tech and parts, so growing the “factory that builds the factory” past that just spends time owed to the goal itself
• the same tension as the megabase travel-time tradeoff, one level up: every layout decision buys throughput or buys build time, never both for free

Speedrunning#

A speedrun optimises for one number — wall-clock time to a rocket launch — and that target changes which designs count as good, compared to a base built to run indefinitely.

• a speedrun base is judged on how fast it reaches rocket tech and parts, not resource efficiency — overproducing costs time for nothing
• because the run ends, long-term concerns a permanent base solves — UPS at scale, sustainable ore, tileable expansion — mostly don’t apply; it can be wasteful wherever that costs no time
• the core decision is the expansion-versus-goal tradeoff above, compressed: how long to grow the factory before switching everything toward the rocket

Speedrunning techniques#

The tradeoff above plays out as a specific set of habits, all aimed at the same target: the player’s travel and setup time, not the factory’s throughput.

• hand feeding: loading a machine directly from the inventory instead of building belts and inserters to do it
• buffers: pre-made intermediates carried in rather than produced on-site, so a step never has to wait on its own supply chain
• memorised blueprints: most speedrun categories restrict importing blueprint strings, so fast, exact placement comes from repetition, not a library lookup

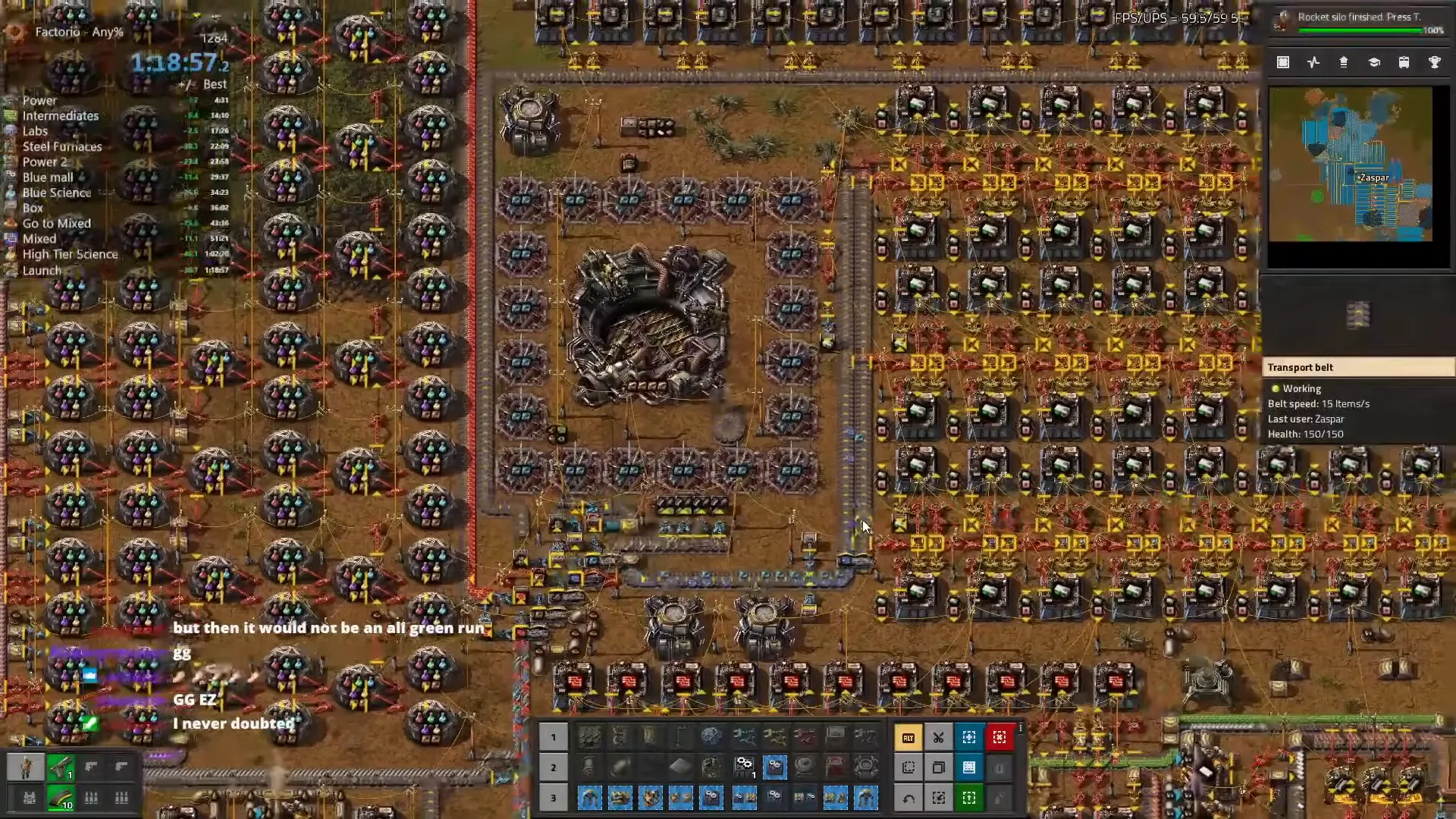

Speedrunning, in practice#

Source: Factorio Wiki, CC BY-NC-SA 3.0.

Every split on this timer is time the run can’t get back — hand feeding and memorised placement exist to keep that number moving.

Designing blueprints for speed#

A blueprint can be optimised for two different things — how fast it goes up, or how much it produces once finished — and a design good at one is often not good at the other.

• a build-speed blueprint favours fewer, simpler entities a bot can place quickly with little wiring to check; a throughput blueprint favours whatever machine/module/beacon mix produces most per tile
• fewer, faster machines cost less UPS for the same output than many slow ones — a UPS-optimised blueprint and a naive “add more assemblers” one can hit the same output at very different sim cost
• neither design is wrong — they solve different problems, which is exactly what this week’s practical compares

This week’s practical#

Goal: given two base designs aimed at different goals, explain the purpose
      of their differences
Test: identify what each design is actually optimising for, then trace
      specific design choices back to that target
Pass: each design's actual optimisation target is correctly identified; at
      least three specific design choices are tied back to that target;
      the comparison doesn't just declare one design "better" overall

“Better” only means something once you’ve said better at what — a speedrun base and a megabase can both be correct designs for their own goal and wrong designs for the other one.
